PCB: design,develop, routing di circuiti stampati

Progettazione di circuiti stampati da zero. Sviluppo da proprio schema: routing e rilascio gerber. Realizzazione, rilascio gerber e spedizione del PCB finito a domicilio.

I PCB realizzati sono assolutamente a normativa e normalizzati in base alla componentistica largamente in uso e reperibilità. I passi dei componenti elettronici sono quelli ufficialmente in uso e reperibili on-line anche per gli SMD.

Esempio di realizzazione di PCB SMD. In questo caso specifico si tratta del PCB dello stadio RIAA del Phonetto.

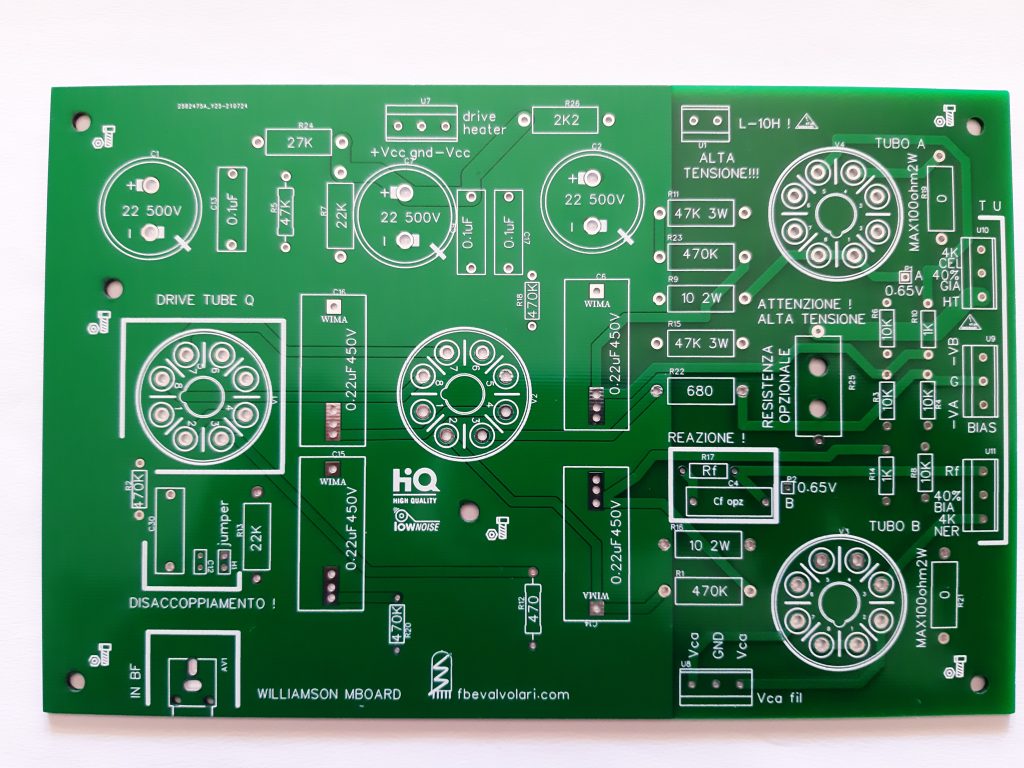

Esempio PCB per circuiti valvolari. In questo caso specifico di tratta del finale monocanale di Duetto.

Esempio di PCB ingegnerizzato a massima flessibilità d’impiego. Nel caso specifico si tratta di un preamplificatore RIAA sia per MM che MC. Gli integrati DIP possono essere rimpiazzati con qualsiasi OP-AMP a package singolo operazionale.

Prezzi: i prezzi variano in funzione della complessità circuitale o del tipo di operazione.

  1. Per la realizzazione da zero a PCB di un circuito dimensione (13×20)cm solo con rilascio file gerber il costo è 200 euro.

2. Per la realizzazione del PCB da proprio circuito con il solo rilascio del file gerber il costo è 100 euro.

Per la realizzazione del PCB sia nel caso 1 oppure nel caso 2, ma con la spedizione del PCB a domicilio, il prezzo è in funzione in più della quantità dei circuiti stampati e dei costi di spedizione (in media 10 euro).
